Crane: Lima 2400B 150 Ton with 140’ Boom,Tier III

Mega Crane

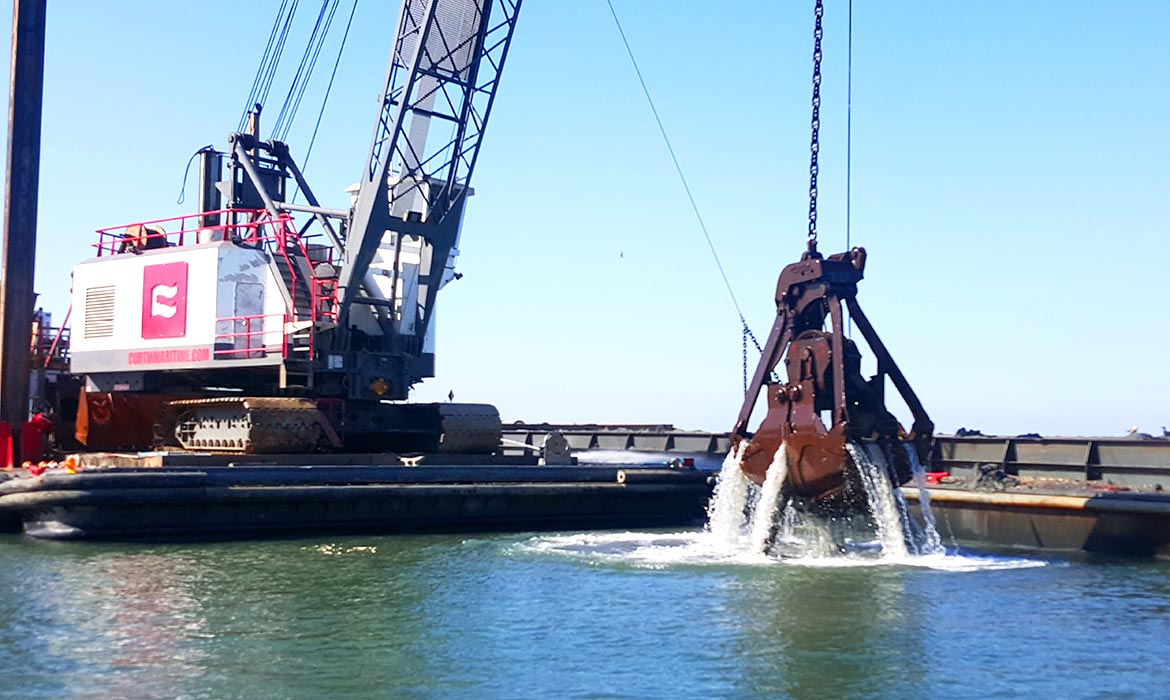

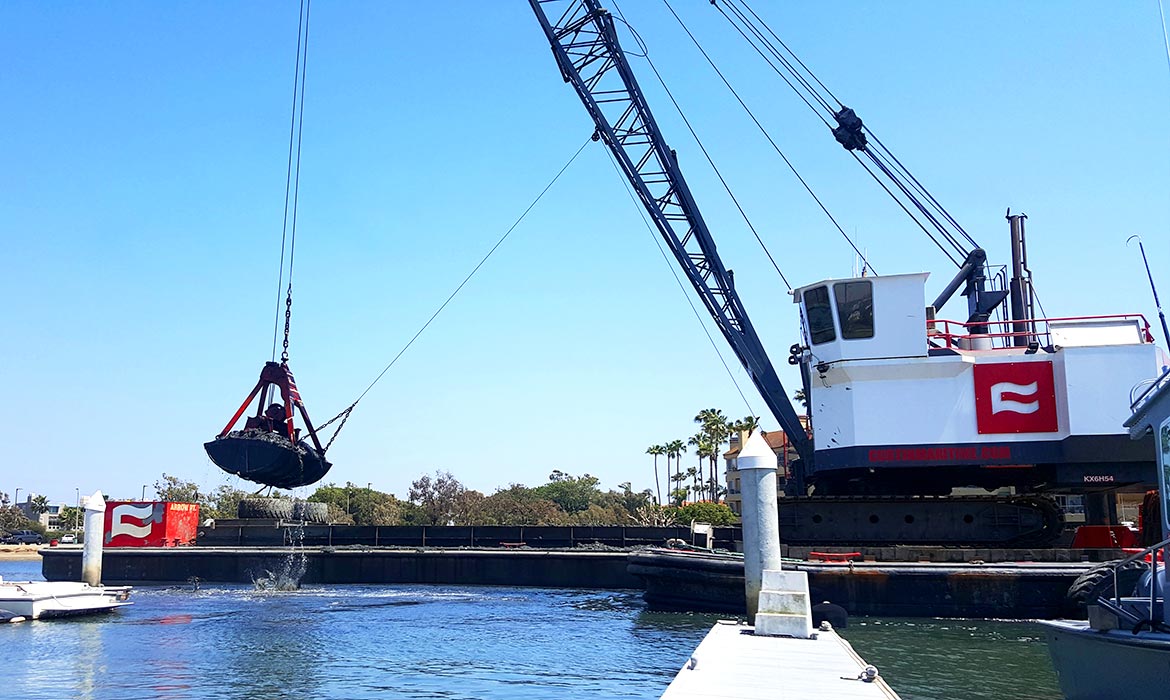

Our premier crane this duty-cycle machine aptly dubbed ‘Mega Crane’, is a marine construction powerhouse! Another incredible in-house modernization by our shipyard design and build team. Mega Crane was designed and built to dig 24 hours a day, 7 days a week. Tier-III compliant, ‘Mega’ has dug millions of yards dredging, driven pile, pulled and set pipeline, and proven time and again there’s no marine services job this crawler crane can’t handle.

When we first decided to build a crane to accommodate db185-3 many months of research and case studies went into first finding the right platform to build of off that would suit the demanding needs of the marine construction sector, both offshore and inshore. A true duty cycle machine with large draw works and a heavy built foundation was selected, a Lima 2400b model. Built as a duty cycle dragline machine it was designed to sit in a pit and dig 24/7.

General Information

VESSEL NAME: Mega Crane
DIMENSIONS: N/A
BUILT: 1980
REBUILT: 2013
MAIN ENGINES: Caterpillar C-18
HORSEPOWER: 800HP @ 1800 RPM
TIER RATING: 3
BOOM LENGTH (STANDARD CONFIGURATION): 120’
GENERATOR: Perkins

MAX CAPACITY: 300,000 lbs
LINE PULL: 70,000 lbs
@ 30’ Radius- 202,000 lbs
@ 120’ Radius- 33,000 lbs
LIFTING LINES: 2
MAIN DRUM HOIST WIRE: 1-3/8”
AUXILIARY DRUM HOIST WIRE: 1-3/8”
BOOM HOIST DRUM WIRE: 1”

A custom boom tip was constructed for this LIMA to accommodate the multiple intended uses. With the addition of the two hydraulic winches combined with the boom tip, we have a true 4line machine that can drive pile, dredge and still maintain our lift capability. The 70GPM dual pump hydraulic system has auxiliary ports to accommodate additional hydraulically powered equipment.

Both Barge and crane are outfitted with full sodium lighting for safe 24hr operation. Lights are positioned on the barges for the deck and perimeter illumination and the crane has lights around the entire house as well as multiple gimbal mounted boom lights.

Specifications
Download Spec Sheet
Lima 2400B Crane Rebuild
Contact Info
CALL
EMAIL

Photo Gallery

VESSEL NAME: Mega Crane
DIMENSIONS: N/A
BUILT: 1980
REBUILT: 2013
MAIN ENGINES: Caterpillar C-18
HORSEPOWER: 800HP @ 1800 RPM
TIER RATING: 3
BOOM LENGTH (STANDARD CONFIGURATION): 120’
GENERATOR: Perkins
MAX CAPACITY: 300,000 lbs
LINE PULL: 70,000 lbs
@ 30’ Radius- 202,000 lbs
@ 120’ Radius- 33,000 lbs
LIFTING LINES: 2
MAIN DRUM HOIST WIRE: 1-3/8”
AUXILIARY DRUM HOIST WIRE: 1-3/8”
BOOM HOIST DRUM WIRE: 1”

Overview

This versatile Combi Tug calls the Port of Long Beach, California home but can be ready at a moments notice to provide marine transportation or marine construction support up and down the Pacific coastline past the Port of San Diego or up past San Francisco Bay & the Port of Oakland to Seattle, Washington and beyond.

General
Year- 1980
Model- 2400B
Builder- Lima
Rebuilt- 2013
Type- Conventional Duty Cycle

Machinery

Main Engine- Caterpillar C-18
Horsepower- 800HP @ 1800 RPM
Tier Rating- 3
Engine Monitoring- Murphy Digital Display
Torque Converter- Clark Torcon 226AH
Generator – Perkins
Generator Capacity- 65 KW
Generator Output- 480V
Tier Rating- 3
Air Compressor- Quincy 325
Fuel Capacity- 600 Gallons
Hydraulic Pumps- (2) @ 35 GPM

Controls

Main Controls- Electronic over air
Hoist- Electronic over air
Brake- Air
Swing- Electronic over air

Electronics

VHF- (2) Icom M-604
Computer- (1) Bice Special
Camera- (5) CCTV
Load Moment Indicator- Rayco Wylie
Climate Control- Fujitsu Air Conditioning

Equipment

Tagline Winch- Hydraulic Constant Tension
Lighting- (4) LED Boom Lights
(5) LED Perimeter Lights

Specifications

Distance from Deck to Boom Heel- 10’10”
Boom Length to Heel Pin- 120’
Boom Length (Standard Configuration)- 120’
Lifting Lines- 2
Main Drum Hoist Wire- 1-3/8”
Auxiliary Drum Hoist Wire- 1-3/8”
Boom Hoist Drum Wire- 1” 1”

Capacities

Maximum Capacity- 300,000 lbs
Line Pull- 70,000 lbs
@ 30’ Radius- 202,000 lbs
@ 120’ Radius- 33,000 lbs
