Sarah C
Combi Tug: 65′
Combi Tug: Sarah C

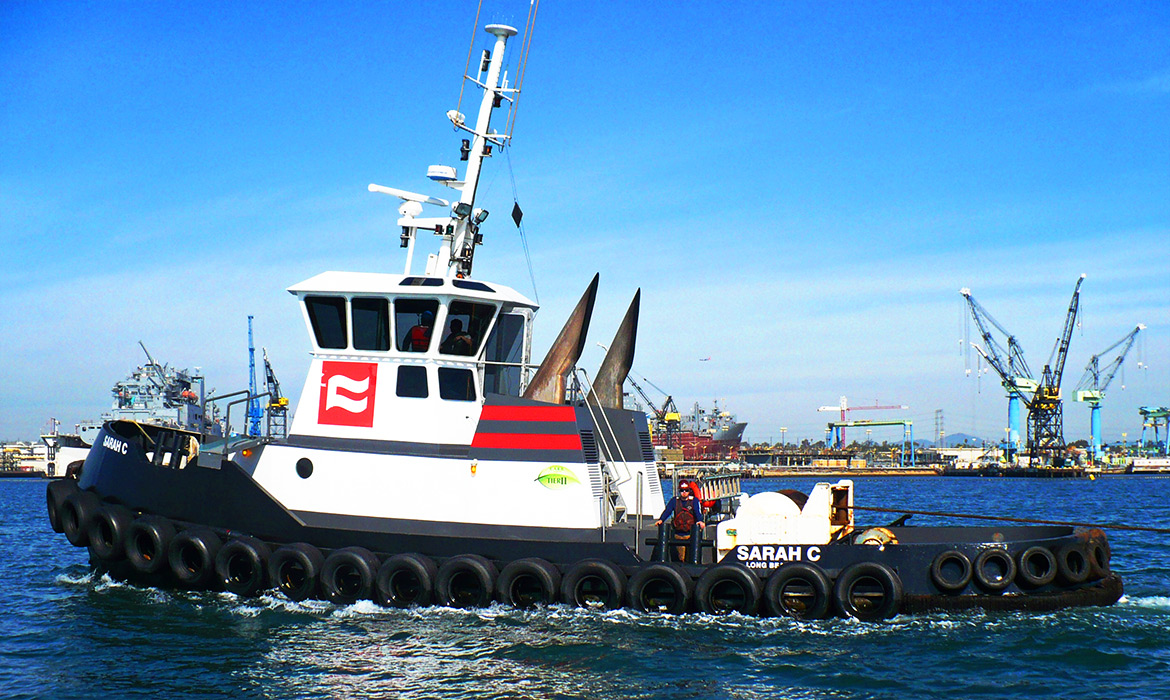

This versatile combi tug has been everywhere and done it all. From offshore towing to anchor handling and ship assist. From Seattle to Palmyra Atoll in the South Pacific. The 65 ft. combi-tug was the first full modernization build of our fleet by Captain/Owner Martin Curtin and Chief Engineer Jason Burcombe. A testament to Curtins’ commitment to efficient boat design, the meticulous attention is given to the boat the Sarah C yielded a tugboat platform that provides maximum versatility while minimizing crew exposure. A platform incorporated in all Curtin Maritime builds. A proven, one of a kind workhorse, the Sarah C. is a tugboat that can perform in any environment.
From it’s home in the Port of Long Beach, California, the Sarah C. is always ready to work at a moments notice.
General Information
VESSEL NAME: SARAH C
DIMENSIONS: 65’ x 24’ x 11’
BUILT: 1965
REBUILT: 2007
MAIN ENGINES: (1) Cummins QSK-38
HORSEPOWER: 1,400 hp @1,800 RPM
TIER RATING: N/A
REDUCTION GEARS: Twin Disc MG540 3.95:1
GENERATOR: (2) Magna Plus
CAPACITY: (1) 200KW 120V/208V
(1) 175KW 120V/208V
TOW WINCH MODEL/DESCRIPTION:
Rapp Hydema Model WT-366 W/ Level Wind
LINE/WIRE SIZE AND LENGTH: 1,800’ 1 ¾ wire
LOWER DRUM: N/A
UPPER DRUM: N/A
TOTAL FUEL CAPACITY: 15,000 gallons
WATER: 750 gallons
Photo Gallery
| VESSEL NAME : | SARAH C |
| DIMENSIONS : | 65’ x 24’ x 11’ |
| HORSEPOWER : | 1,400 hp @1,800 RPM |
| BUILT : | 1965 |
| REBUILT : | 2007 |
| MAIN ENGINES: | (1) Cummins QSK-38 |
| TOTAL HORSEPOWER: | 1,400 hp @1,800 RPM |
| TIER RATING: | N/A |
| REDUCTION GEARS: | Twin Disc MG540 3.95:1 |
| GENERATOR: | Generator: (2) Magna Plus |
| CAPACITY: | (1) 200KW 120V/208V (1) 175KW 120V/208V |
| TOW WINCH MODEL/DESCRIPTION: | Rapp Hydema Model WT-366 W/ Level Wind 1,800’ 1 ¾ wire |
| LINE/WIRE SIZE AND LENGTH: | 1,800’ 1 ¾ wire |
| LOWER DRUM: | N/A |
| UPPER DRUM: | N/A |
| TOTAL FUEL CAPACITY: | 15,000 gallons |
| WATER: | 750 gallons |
Overview
This versatile Combi Tug calls the Port of Long Beach, California home but can be ready at a moments notice to provide marine transportation or marine construction support up and down the Pacific coastline past the Port of San Diego or up past San Francisco Bay & the Port of Oakland to Seattle, Washington and beyond.
| VESSEL NAME : | SARAH C |
| DIMENSIONS : | 65’ x 24’ x 11’ |
| HORSEPOWER : | 1,400 hp @1,800 RPM |
| BUILT : | 1965 |
| REBUILT : | 2007 |
| MAIN ENGINES: | (1) Cummins QSK-38 |
| TOTAL HORSEPOWER: | 1,400 hp @1,800 RPM |
| TIER RATING: | N/A |
| REDUCTION GEARS: | Twin Disc MG540 3.95:1 |
| GENERATOR: | Generator: (2) Magna Plus |
| CAPACITY: | (1) 200KW 120V/208V (1) 175KW 120V/208V |
| TOW WINCH MODEL/DESCRIPTION: | Rapp Hydema Model WT-366 W/ Level Wind 1,800’ 1 ¾ wire |
| LINE/WIRE SIZE AND LENGTH: | 1,800’ 1 ¾ wire |
| LOWER DRUM: | N/A |
| UPPER DRUM: | N/A |
| TOTAL FUEL CAPACITY: | 15,000 gallons |
| WATER: | 750 gallons |

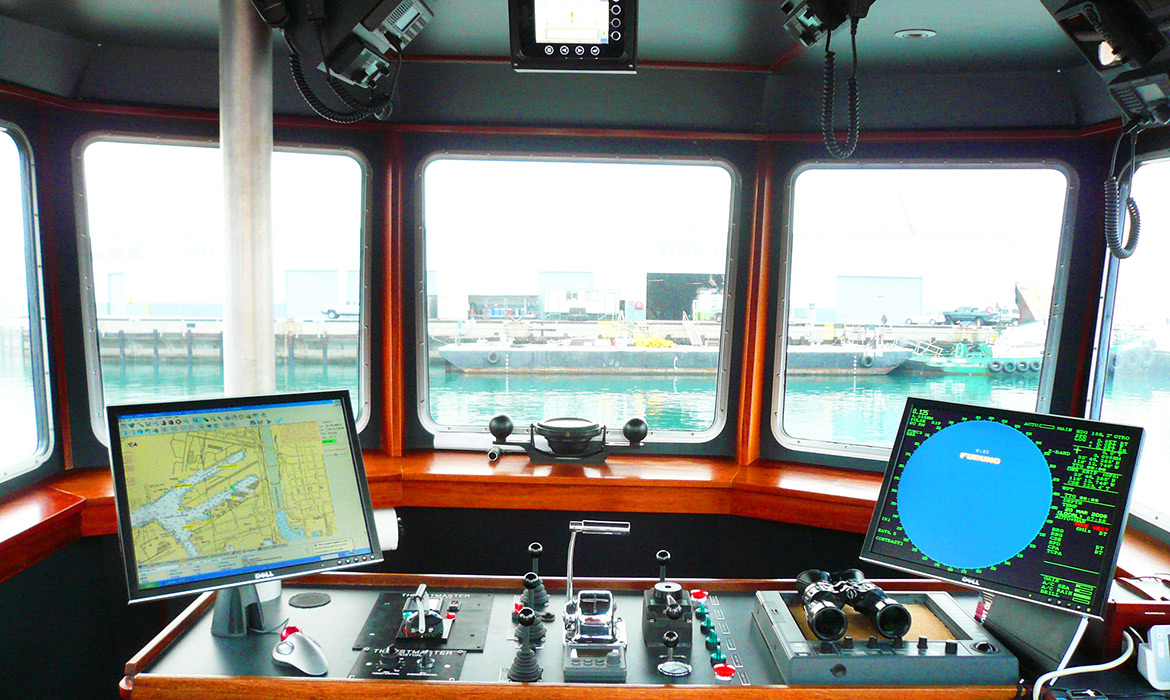

Wheelhouse
| Radar : | (1) Furuno Model 1810, 24-mile range |
| Furuno, Model FR-1510, 72-mile range ARPA | |
| Chartplotter : | Nobeltec |
| AIS : | Furuno FA-150 |
| GPS : | (1) Furuno Model GPS-32 WAAS |
| AIS : | Furuno Model FA-150 |
| Sat Compass : | Furuno, SC-502 |
| Auto Pilot : | Icom, Furuno Nav Pilot |
| VHF : | (1) Icom M604 |
| (2) Icom M127 | |
| SSB : | Furuno Model 1503 |
| Loud Hailer : | Integral to VHF |
| Compass : | Danforth 5-1/2-in. |
| Sounder : | Furuno Model FCV-620 |
| Displays : | (2) Dell 20” |
| Video : | CCTV Engine Room |
| Engine Monitoring : | Murphy Helm View |

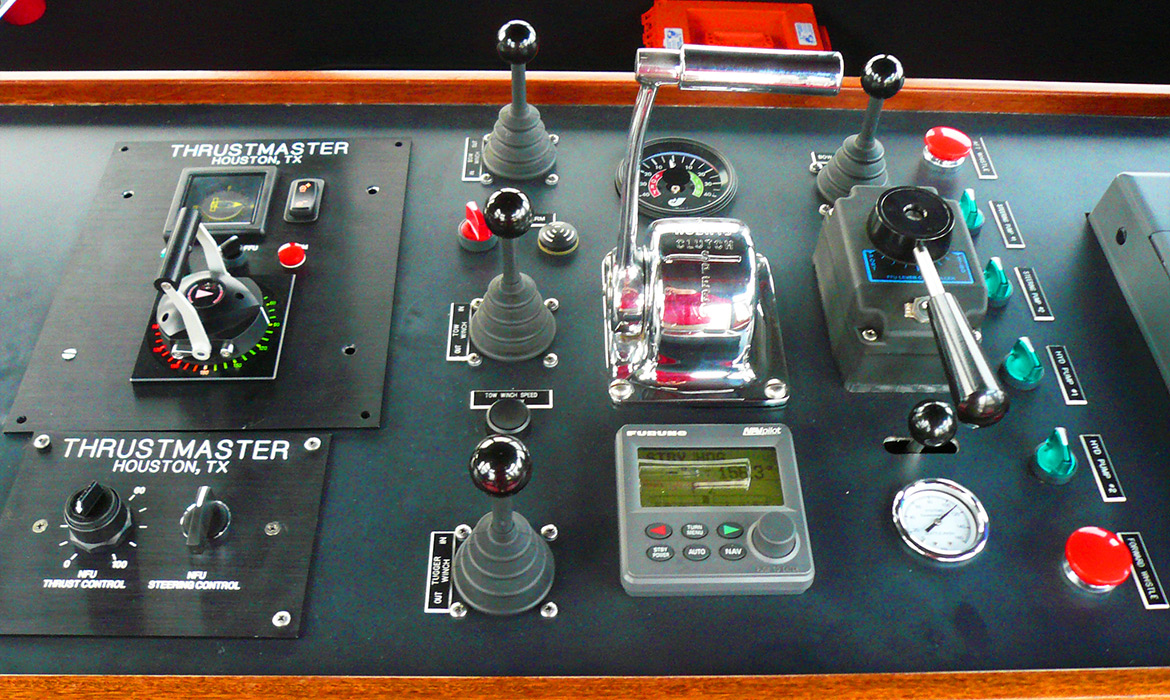

| Controls : | Mathers Pneumatic |
| Searchlight : | Handheld |
| Computer : | Dell PC W/ 16” monitor |
| Anemometer : | Extech Handheld |
| Cell Phone : | (562) 706-0330 |
| Sat Phone : | 881631538694 |
Galley
| Kenmore Refrigerator | Kenmore Stainless Steel Range |
| Kenmore Microwave | Kenmore Stainless Steel Oven |
| Stainless Steel Sink | Kenmore 6-cu-ft chest freezer |
Berthing/Amenities
| (1) | Two person staterooms |
| (1) | Six person staterooms |
| (8) | Total bunks |
| (1) | Head W/ Shower |
| (1) | Washer/Dryer |
| (1) | Vizio 42” TV |
| (3) | 17” Monitors |

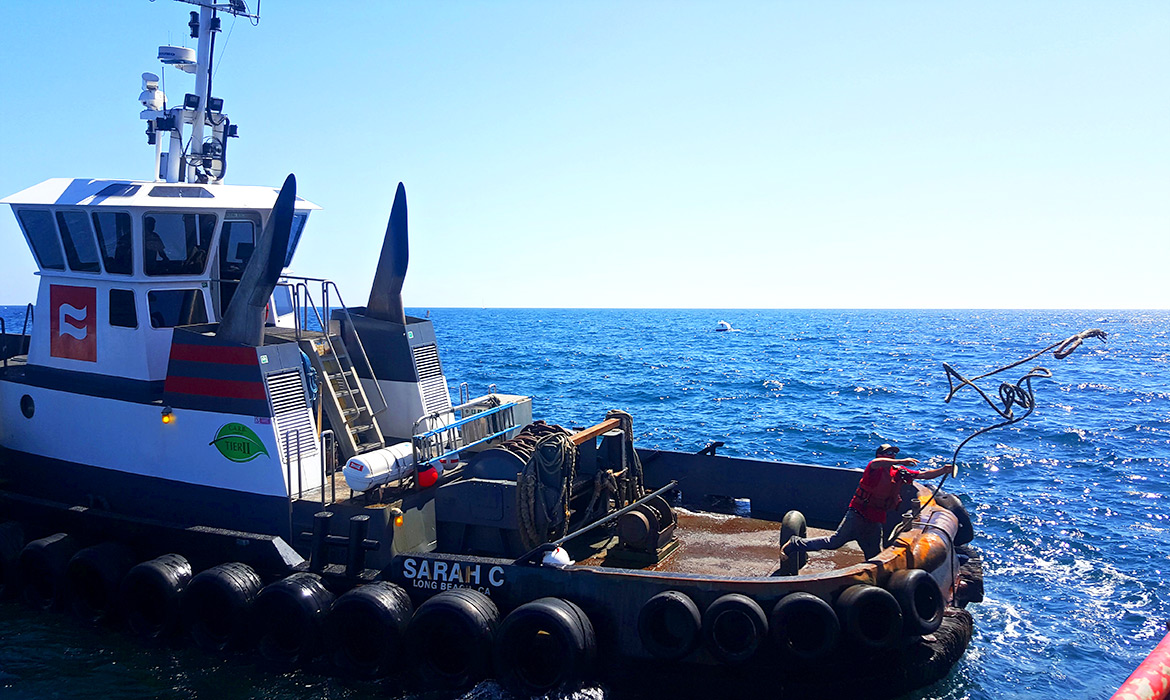

Deck
| Tow Winch Model/Description: | Rapp Hydema Model WT-366 W/ Level Wind |
| Line/Wire Size and Length: | 1,800’ 1 ¾ wire |
| Power Source : | Hydraulic |
| Bow Winch : | (1) Pullmaster Model H-18 |
| Line/Wire Size and Length : | Kevlar 2” 65’ |
| Power Source : | Hydraulic |
| Auxiliary Winch(es)- : | Stern Pullmaster Model H-25 |
| Line/Wire Size and Length : | Kevlar 2” 75’ |
| Power Source : | Hydraulic |
| B B Winch/Push Winches : | |
| Line/Wire Size and Length : | N/A |
| Power Source : | N/A |
| Capstan : | N/A |
| Tow Pins : | Removable |
Fendering
| Aircraft Tires from quarters – around stern |
| Laminate Bow – Stern |
| Bow Pudding |
Machinery
| Main Engines : | (1) Cummins QSK-38 |
| Horsepower: | 1,400 hp @1,800 RPM |
| Z-Drive : | Thrust Master Model 19-A 400HP Hydraulic W/ 46” Propeller |
| Thruster : | 100hp Thurstmaster Tunnel Thruster |
| Reduction Gears : | Twin Disc MG540 3.95:1 |
| Generator : | (2) Magna Plus |
| Capacity : | (2) Northern Lights, M65C2 Generator |
| Capacity : | (1) 200KW 120V/208V |
| (1) 175KW 120V/208V | |
| Generator Engine : | (2) John Deere 6081 |
| Generator Engine Starting : | Electric Motor |
| Generator Engine Cooling : | Keel Coolers |
| Fire Fighting : | 2” Gas trash pump |
| Fuel Transfer : | (1) Fill Rite Model 310, 1” hose |
Running Gear
| Propeller : | 89” x 57” 5-Blade Stainless Steel |
| Shafts : | 7 ½” Stainless Steel |
| Shaft Through Hull : | Conventional stuffing box |
| Rudders/Nozzles : | Single conventional rudder |
Auxiliary Machinery
| Hydraulic Pumps: | (2) Deck Hydraulic Pumps |
| Air Compressor: | (2) Speedaire, two cylinder air compressors |
| Electrical Service: | 480V/208V/110V |
| Water Maker: | Sea Recovery 19gph |
Equipment
| Welder: | Miller XMT 350 |
| Oxygen/Acetylene: | Yes |
Tankage
| Total Fuel Capacity : | 15,000 gallons |
| # Of Fuel Tanks : | 6 |
| Day Tanks : | No |
| Water : | 750 gallons |
| Lube : | 200 gallons |
| Hydraulic : | 200 gallons |
| Ballast : | No |
| Slops : | No |
Cordage
| (1) 40’ 2” Amsteel Blue Bridle |
| (1) 50’ 2” Amsteel Blue Bridle |
| (2) Monkeys Fist Heaving Lines |
| (2) Grapple Hook W/ Lines |
Safety
| Liferaft: | Crewsaver USCG/SOLAS approved inflatable 6-person |
| Liferings: | 2 |
| EPIRB : | One ACR Model RLB-32 Satellite 406 |
| Flares : | Six parachute, three smoke and six handheld |
| Fire Extinguishers : | 6 |
| Fixed Extinguisher- : | Semi-Portable B5 |
| Survival Suits : | (6) USCG approved |
| Life Preservers : | 6 |
| AED : | Yes |
| First Aid Kit : | Yes |
| Trauma Kit : | Yes |
| Oxygen Bottle : | Yes |
