Barge : 260′ X 72′
Eel Pt.
260 feet long by 72 feet wide and capable of holding 570,000 gallons of potable water, Curtin Maritimes roll on-roll off barge Eel Pt. can fulfill your water needs or get your cargo wherever it needs to go! Six-foot bin-walls, six lanes, and abundant lashing points ensure your cargo will travel and arrive safely, even if traveling through less than desirable weather conditions.
General Information
Year- 2010
Builder- C & C Marine
Rebuilt- 2015, Curtin Maritime
Length- 260’
Beam- 72’
Depth- 16’
Loaded Draft- 12’6”
Light Draft- 2’
Official Number- 1225102
IMO Number- 142
MMSI- N/A
Class- ABS
Load Line- ABS
Certification- USCG COI Unmanned,
Certified to carry CDC’s
Gross Tonnage- 2164 GRT
Air Draft- (ramp height is 60’)
Last Dry Dock- 2015

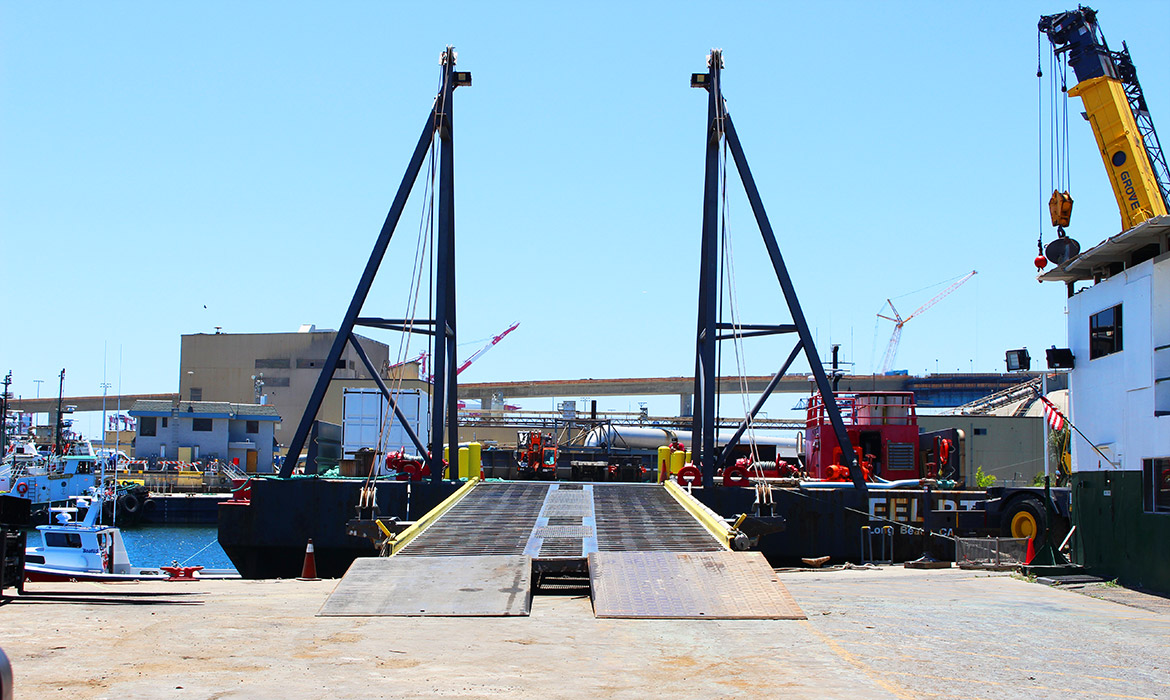

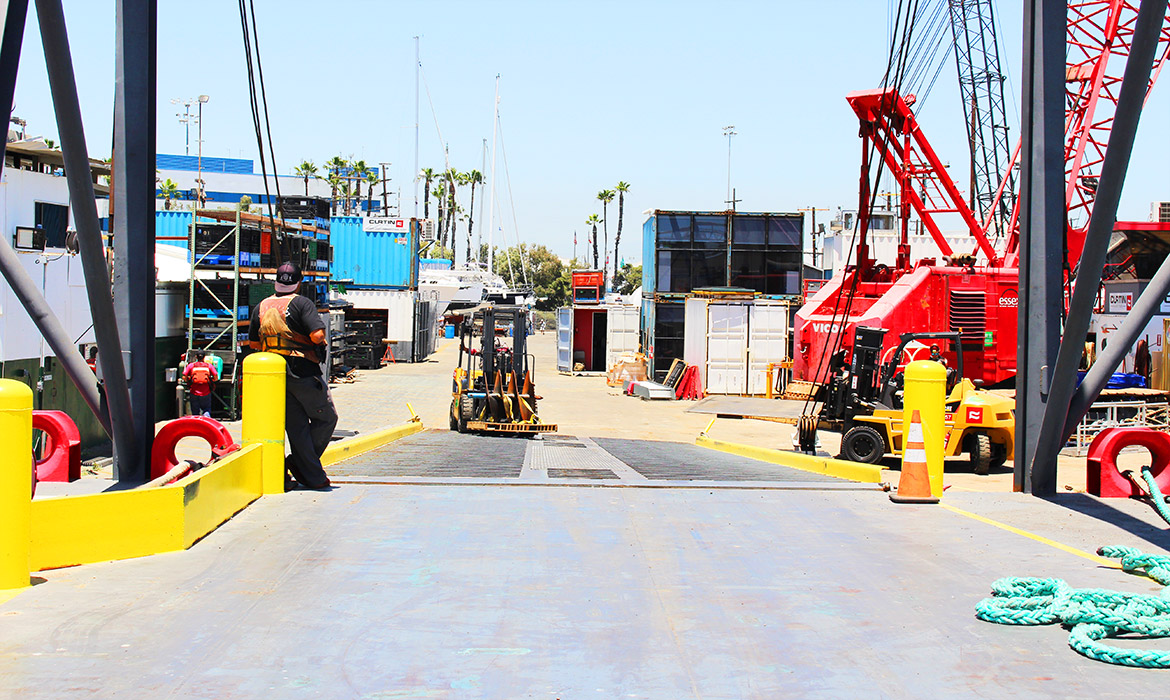

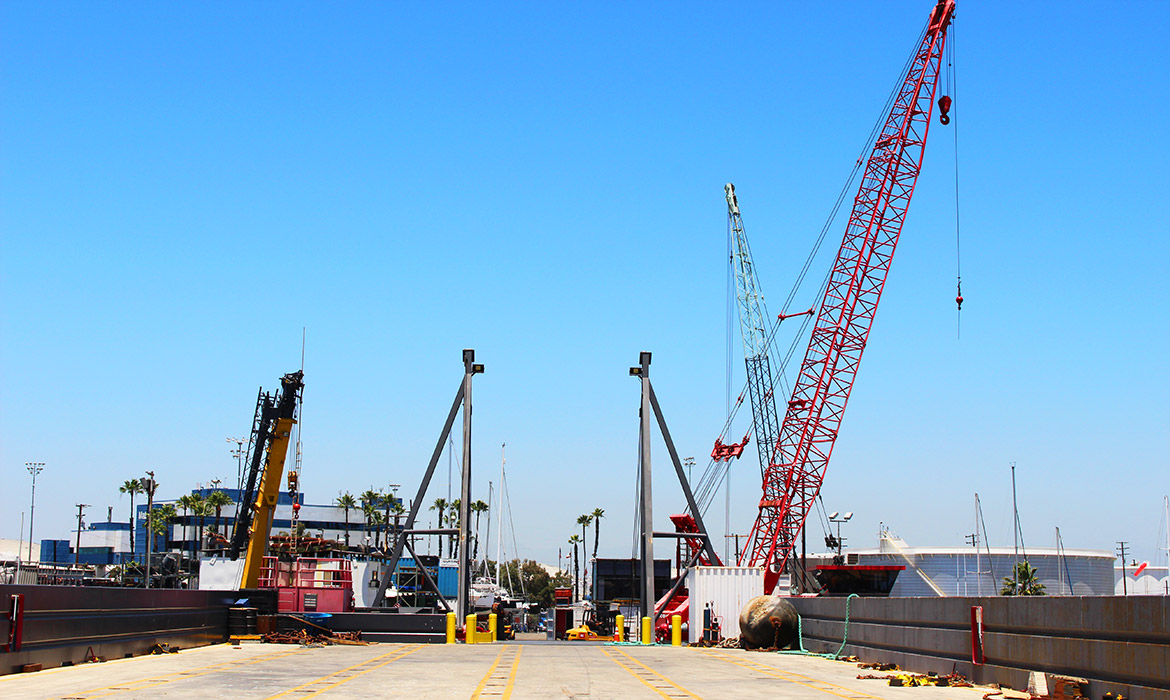

Photo Gallery
General
| Vessel- | Eel Point |
| Year- | 2010 |
| Builder- | C & C Marine |
| Rebuilt- | 2015, Curtin Maritime |
| Length- | 260’ |
| Beam- | 72’ |
| Depth- | 16’ |
| Loaded Draft- | 12’6” |
| Light Draft- | 2’ |
| Official Number- | 1225102 |
| IMO Number- | 142 |
| MMSI- | N/A |
| Class- | ABS |
| Load Line- | ABS |
| Certification- | USCG COI Unmanned, Certified to carry CDC’s |
| Gross Tonnage- | 2164 GRT |
| Air Draft- | (ramp height is 60’) |
| Last Dry Dock- | 2015 |
Overview
This versatile west coast project cargo ocean carrier calls the Port of Long Beach, California home but can be ready at a moments notice to provide marine transportation or marine construction support up and down the Pacific coastline past the Port of San Diego or up past San Francisco Bay & the Port of Oakland to Seattle, Washington and beyond.
General
| Vessel- | Eel Point |
| Year- | 2010 |
| Builder- | C & C Marine |
| Rebuilt- | 2015, Curtin Maritime |
| Length- | 260’ |
| Beam- | 72’ |
| Depth- | 16’ |
| Loaded Draft- | 12’6” |
| Light Draft- | 2’ |
| Official Number- | 1225102 |
| IMO Number- | 142 |
| MMSI- | N/A |
| Class- | ABS |
| Load Line- | ABS |
| Certification- | USCG COI Unmanned, Certified to carry CDC’s |
| Gross Tonnage- | 2164 GRT |
| Air Draft- | (ramp height is 60’) |
| Last Dry Dock- | 2015 |
Load
| Deck Dimensions- | 227’ x 62’ |
| Bin Wall Side Height- | 6’ |
| Deadweight Capacity- | 4750 LT |
| Lashing Equipment/Deck eyes- | Chain and ratcheting turn buckle lashing |
| Lanes- | 6 |
Machinery Deck Equipment
| Generator- | John Deere 4045 |
| Capacity- | 65 Kw |
| Output- | 480V |
| Winches- | (4) Pullmaster 25 W/ 150’ 1 ½’ Blue Steel |
| Lighting- | Pontilux LED Flood lights |
| Water transfer pump & Capacity- | (1) Godwin 50hp 6” Water Pump 48,000 GPH |
Ramp
| Dimensions- | 60’ x 16’ |
| Capacity- | 200,000 lbs |
| Tankage | |
| Water- | 570,000 gallons |
Cordage
| 300’ 2 ½” 8 Strand Ultra Blue | |
| 300’ 2 ½” 8 Strand Nylon |
