Ocean Tug : 87’ Twin Screw Tug
Kelly C

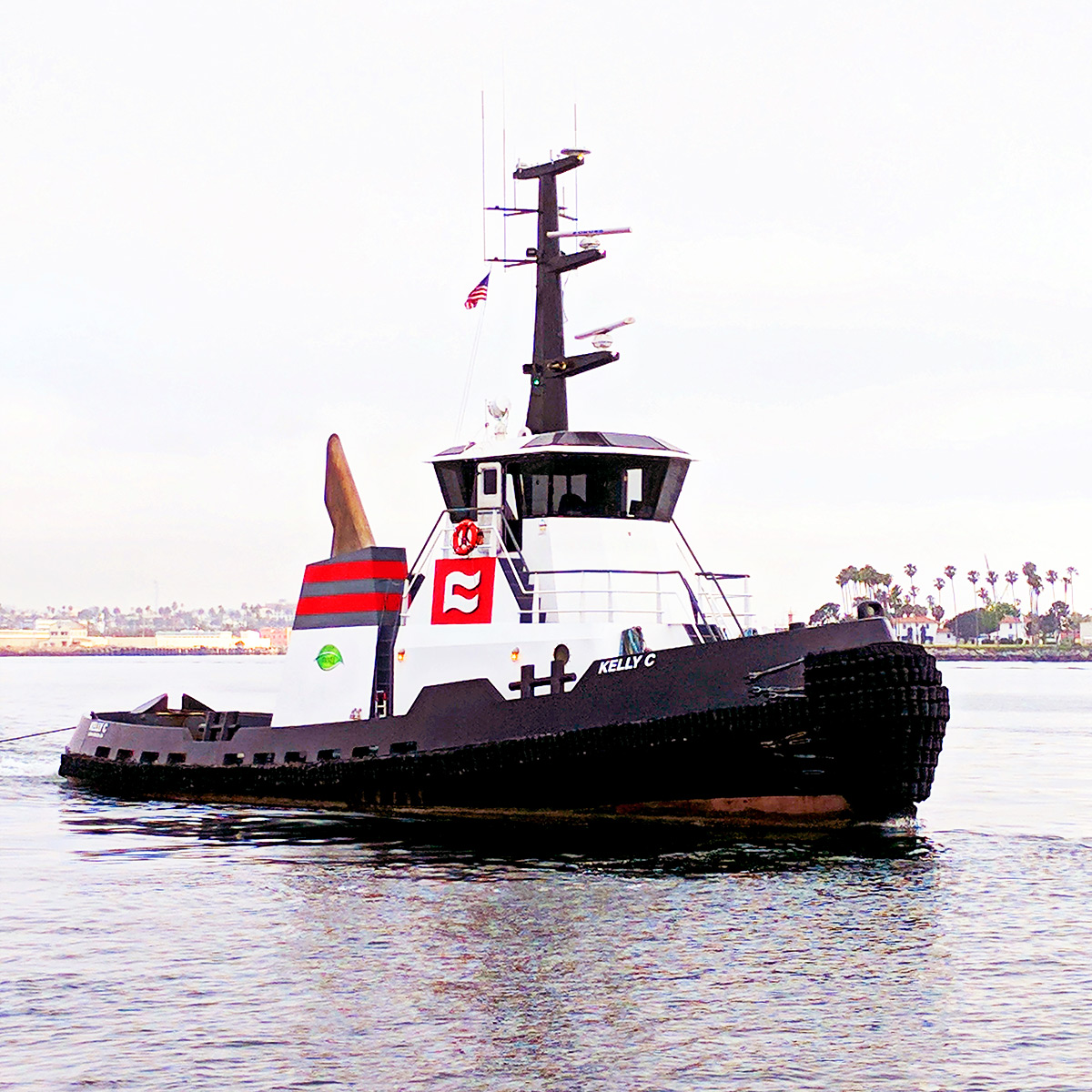

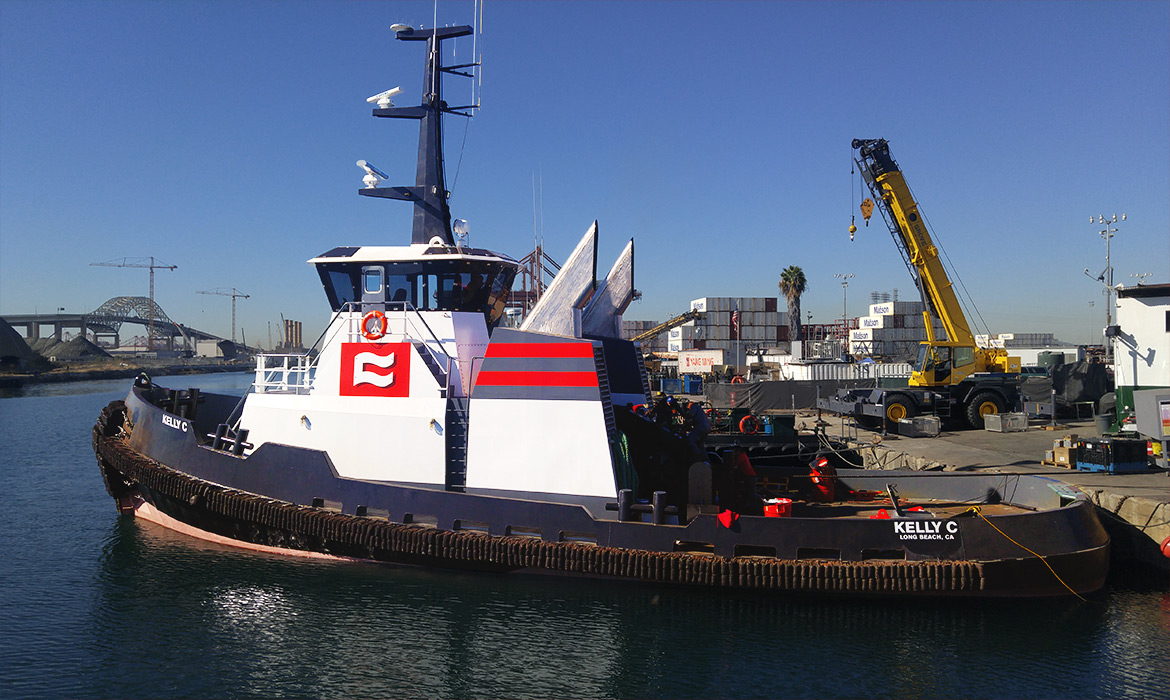

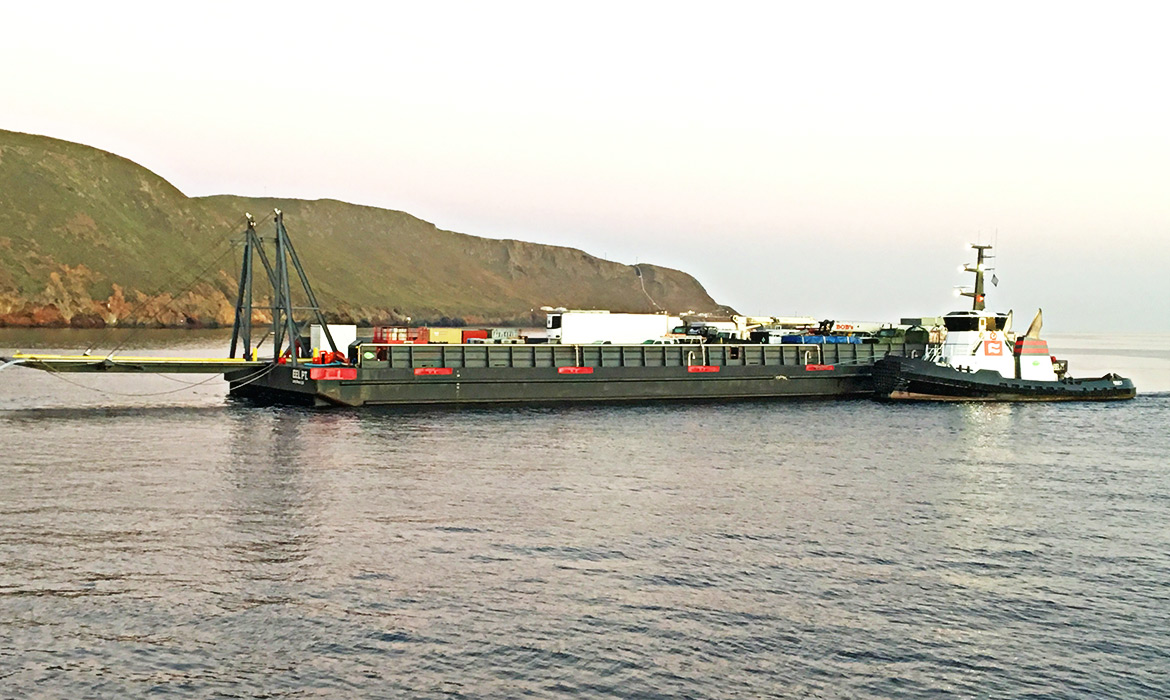

The tugboat Kelly completed in 2015 is a favorite ship in our fleet of tugboats! Starting with just the hull, the Curtin Shipyard Services team designed and fabricated this beautiful 3,000 horsepower tugboat we now operate today. This tug is used for the bulk of our large barge handling along the West Coast, the Kelly C. is a favorite boat among Captains and crew for its intelligent working design and comfortable interior layout.
General Information
VESSEL NAME: KELLY C
DIMENSIONS: 87’ x 28’ x 11’
HORSEPOWER: 3,000 @1800
BUILT: 1967
REBUILT: 2015
MAIN ENGINES: (2) Cummins QSK-38
TOTAL HORSEPOWER: 3,000 @1800
TIER RATING: 3
REDUCTION GEARS: Twin Disc MG-5600, 6:1
GENERATOR: Generator: (2) Northern Lights, M65C2
CAPACITY: 65-kW Three Phase 120/240
TOW WINCH MODEL/DESCRIPTION:
Skagit RB-90, Double Drum Waterfall Style
LINE/WIRE SIZE AND LENGTH:
LOWER DRUM: 1,800’ 1 ¾ wire
UPPER DRUM: 150’ 1 ¾ Kevlar soft line, 150’ 2”
Amsteel Blue
TOTAL FUEL CAPACITY: 51,130 gallons
WATER: 5,740 gallons
Photo Gallery
| VESSEL NAME : | KELLY C |
| DIMENSIONS : | 87’ x 28’ x 11’ |
| HORSEPOWER : | 3,000 @1800 |
| BUILT : | 1967 |
| REBUILT : | 2015 |
| MAIN ENGINES: |
(2) Cummins QSK-38 |
| TOTAL HORSEPOWER: | 3,000 @1800 |
| TIER RATING: | 3 |
| REDUCTION GEARS: | Twin Disc MG-5600, 6:1 |
| GENERATOR: | Generator: (2) Northern Lights, M65C2 |
| CAPACITY: | 65-kW Three Phase 120/240 |
| TOW WINCH MODEL/DESCRIPTION: | Skagit RB-90, Double Drum Waterfall Style |
| LINE/WIRE SIZE AND LENGTH: | |
| LOWER DRUM: | 1,800’ 1 ¾ wire |
| UPPER DRUM: | 150’ 1 ¾ Kevlar soft line, 150’ 2” Amsteel Blue |
| TOTAL FUEL CAPACITY: | 51,130 gallons |
| WATER: | 5,740 gallons |
| VESSEL NAME : | KELLY C |
| DIMENSIONS : | 87’ x 28’ x 11’ |
| HORSEPOWER : | 3,000 @1800 |
| BUILT : | 1967 |
| REBUILT : | 2015 |
| MAIN ENGINES: |
(2) Cummins QSK-38 |
| TOTAL HORSEPOWER: | 3,000 @1800 |
| TIER RATING: | 3 |
| REDUCTION GEARS: | Twin Disc MG-5600, 6:1 |
| GENERATOR: | Generator: (2) Northern Lights, M65C2 |
| CAPACITY: | 65-kW Three Phase 120/240 |
| TOW WINCH MODEL/DESCRIPTION: | Skagit RB-90, Double Drum Waterfall Style |
| LINE/WIRE SIZE AND LENGTH: | |
| LOWER DRUM: | 1,800’ 1 ¾ wire |
| UPPER DRUM: | 150’ 1 ¾ Kevlar soft line, 150’ 2” Amsteel Blue |
| TOTAL FUEL CAPACITY: | 51,130 gallons |
| WATER: | 5,740 gallons |

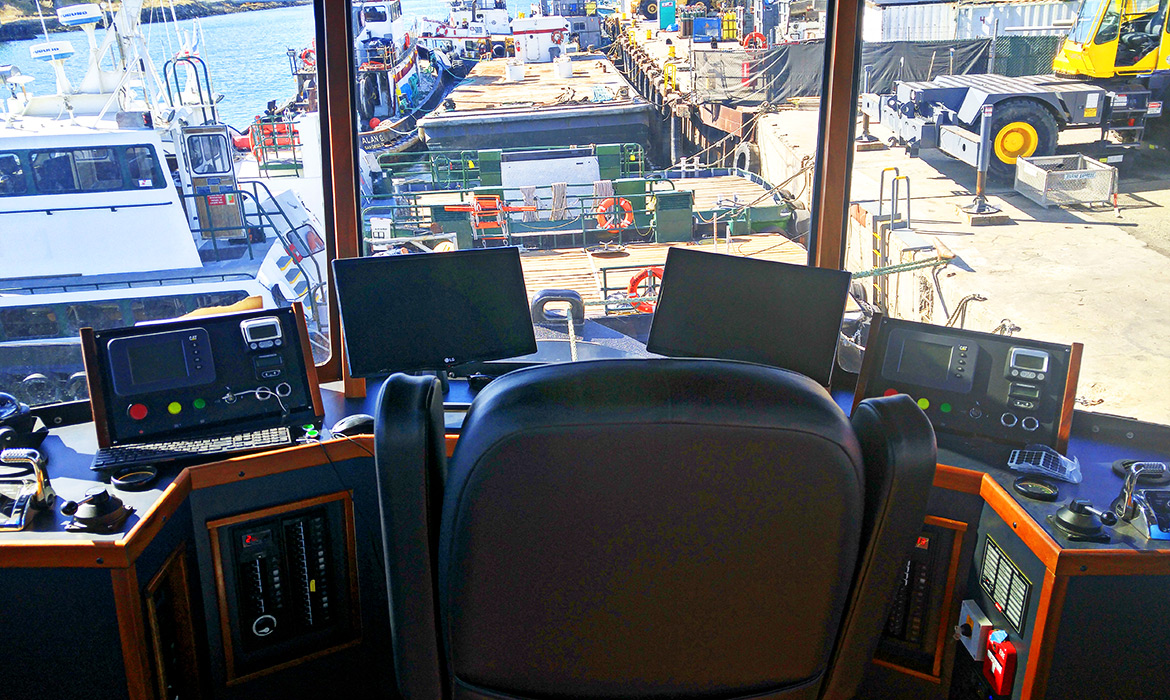

Wheelhouse
| Radar : | Furuno, FR-2117 96-nm, Furuno, DRS-12A, 72-nm |
| Chartplotter : | Nobeltec Trident, Furuno Navnet |
| GPS : | Furuno GP-32 |
| AIS : | Furuno FA-150 |
| Sat Compass : | Furuno model S-50 |
| Auto Pilot : | Comnav 2001 |
| VHF : | (3) Icom, IC-M604 |
| SSB : | Icom, IC-M802 |
| Compass : | Ritchie, 4-in-dia |
| Sounder : | Furuno DFF1 |
| Displays : | LG Monitors |
| Video : | CCTV Engine Room |
| Engine Monitoring : | (Murphy Gauges, Cat Displays, ETC.) |
| Controls : | Twin Disc Power Commander |
| Searchlight : | Carlisle Finch, 14-in-dia |
| Computer : | Dell Desktop |
| Cell Phone : | (562) 472-5244 |
| Sat Phone : | Iridium 881631539004 |
Galley
| Samsung Range W/ Vent | Stainless steel sink |
| Samsung Stainless Refrigerator | Microwave |
Berthing/Amenities
| (4) | Two person staterooms |
| (8) | Total bunks |
| (1) | Head W/ Sink & Shower, Washer/Dryer |
Deck
| Tow Winch Model/Description: | Skagit RB-90, Double Drum Waterfall Style |
| Line/Wire Size and Length: |
|
| Lower Drum : | 1,800’ 1 ¾ wire |
| Upper Drum : | 150’ 1 ¾ Kevlar soft line, 150’ 2” Amsteel Blue |
| Power Source : | Detroit 6-V 71 |
| Winch Controls : | 3 Speed Tiptronic |
| Capstan : | Horizontally fixed mounted & operated by tow winch |
| Tow Pins : | Custom Air-Actuated Port/Stbd pins |
Fendering
| Double loop stem-stern |
Machinery
| Main Engines : | (2) Caterpillar 3512 |
| Total Horsepower: | 3,000 @1800 |
| Tier Rating : | 2 |
| Main Engine Cooling : | Furnstrum Grid Coolers, Keel Coolers |
| Main Engine Starting : | Pneumatic |
| Reduction Gears : | Twin Disc MG-5600, 6:1 |
| Generator : | (2) Northern Lights, M65C2 Generator |
| Capacity : | 65-kW Three Phase 120/240 |
| Generator Engine : | (2) John Deere 4045 |
| Generator Engine Starting : | Electric Motor |
| Generator Engine Cooling : | Grid Coolers |
| Fire Pump : | Barnes 3-in-dia, 7.5-hp |
| Fuel Transfer : | (1) Munters 5hp 2 ½” , 1.5hp 1 ½” |
Running Gear
| Propellers : | (2) Stainless Steel 86” x 60” |
| Shafts : | (1) 10” Stainless Steel 10” Steel |
| Shaft Through Hull : | Conventional stuffing box |
| Rudders/Nozzles : | Conventional Rudders |
Auxiliary Machinery
| Air Compressor: | (2) Quincy 325 |
| Electrical Service: | 208v/110v |
Equipment
| Welder: | Miller XMT 350 |
| Oxygen/Acetylene: | Yes |
Tankage
| Total Fuel Capacity : | 51,130 gallons |
| # Of Fuel Tanks : | 6 |
| Day Tanks : | 2 |
| Water : | 5,740 gallons |
| Lube : | 500 gallons |
| vSlops : | 2,000 gallons |
Cordage
| 75’ 2” Amsteel blue |
| 100’ 1 ½” Amsteel Blue |
| Misc. Kevlar |
Safety
| Liferaft: | Elliott, 6-Person “A” Pack |
| Liferings: | 4 |
| EPIRB : | ACR, RLB-37, 406-MHz |
| Fire Extinguishers : | 500-lb CO2 |
| Survival Suits : | Seven Universal, One Jumbo |
| Life Preservers : | (8) Type 1 |
| AED : | Yes |
| First Aid Kit : | Yes |
| Trauma Kit : | Yes |
| Oxygen Bottle : | Yes |
