Mini Tug : 45′
Bernardine C
In 2015, Curtin Maritime successfully completed its first ‘ground up’ vessel fabrication build, the Bernardine C. Constructed at the company’s shipyard in the Port of Long Beach, CA, this Tier III-compliant tugboat, affectionately nicknamed Bernie, boasts individually steerable Kort nozzles and a custom winch arrangement comprising of three Pullmaster hydraulic winches. Designed and built entirely in-house, this tug was conceptualized by Curtin engineers and crafted by the company’s shipyard crew. It immediately went into service, playing a crucial role in dredging Huntington Beach Harbor as the rig tender for the DB Ben Weston. The Bernardine’s unique design and layout make it invaluable across various workboat applications including rig tender, anchor handler, and assist boat. Additionally, its draft allows it to access harbors that are often inaccessible to most tugs.
General Information
Year- 2016
Builder- Curtin Maritime
Rebuilt- N/A
Length- 45’
Beam- 22’
Draft- 5’
Official Number- 1266381
IMO Number
Radio Call Sign- WDI7204
MMSI- 367726390
Class- N/A
Load Line- N/A
Certification- USCG
Gross Tonnage- 39 GRT
Air Draft- 22’
(Power foldable mast, mast down)
Last Dry Dock- 2016

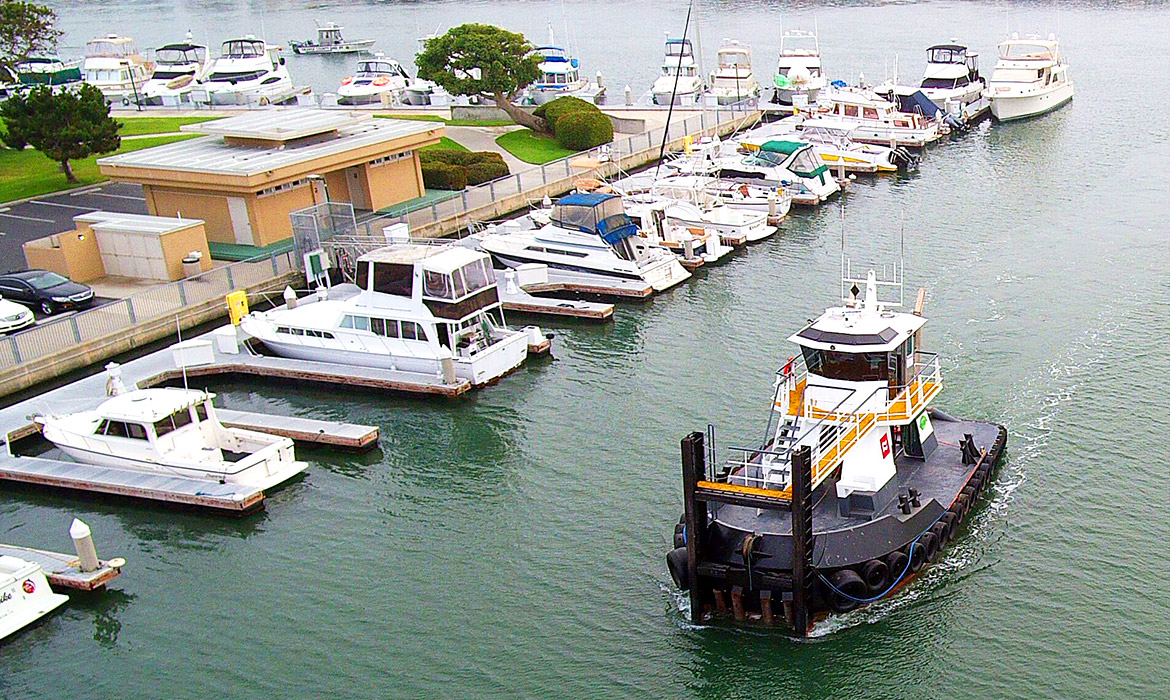

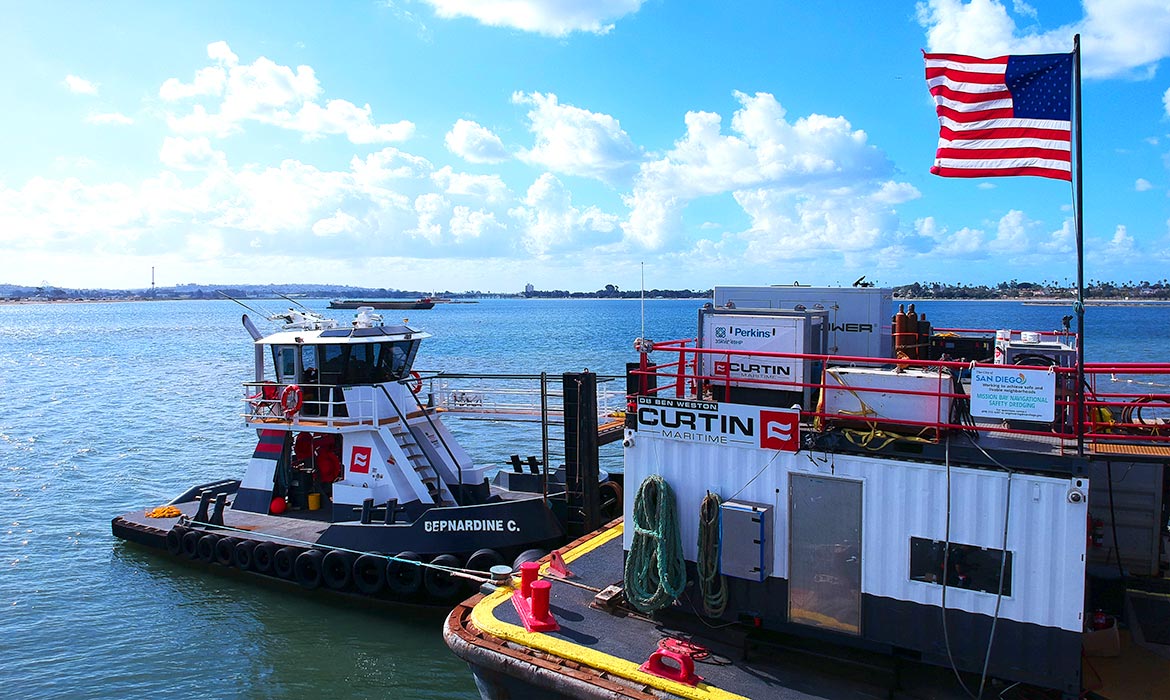

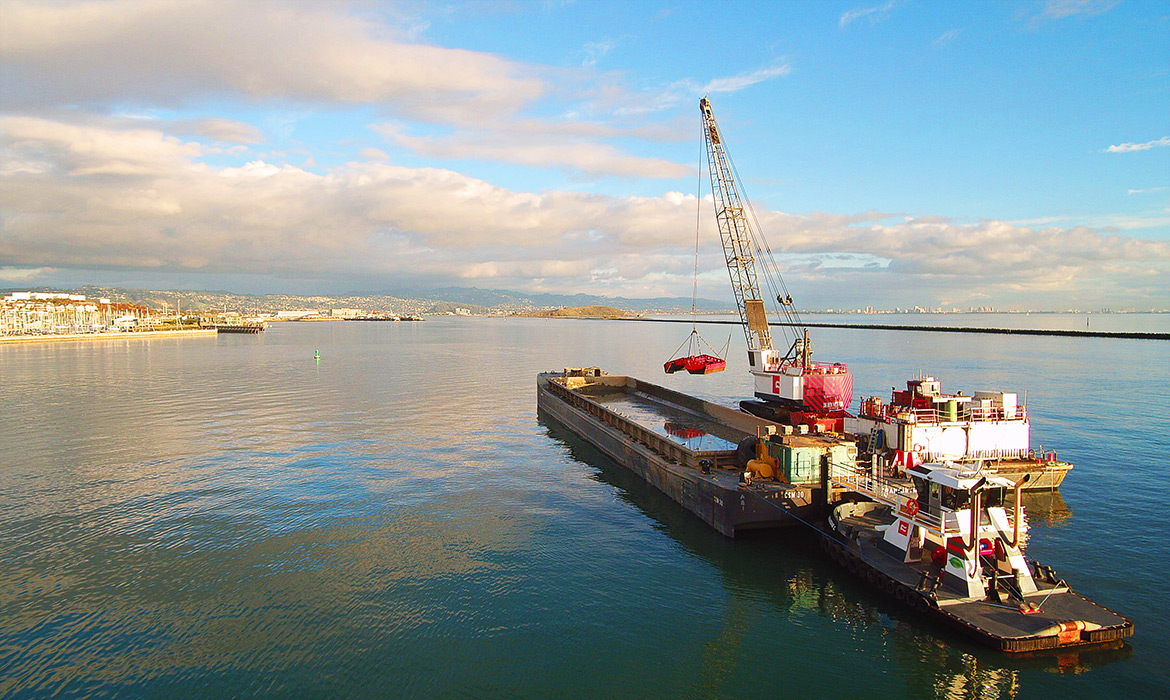

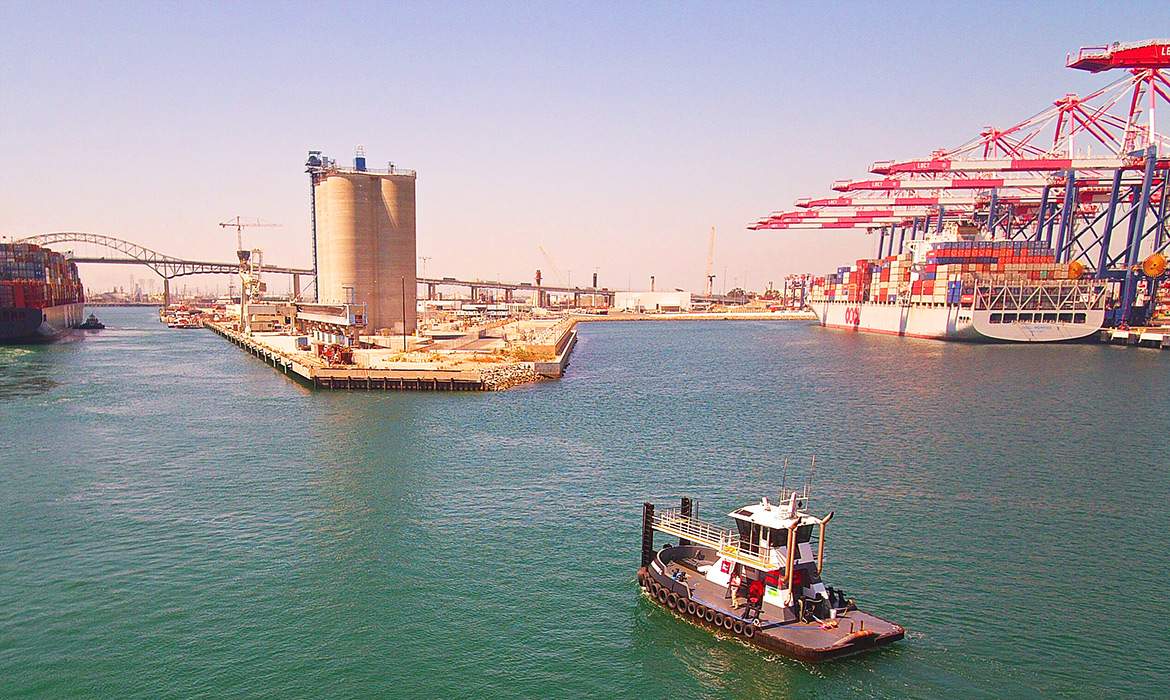

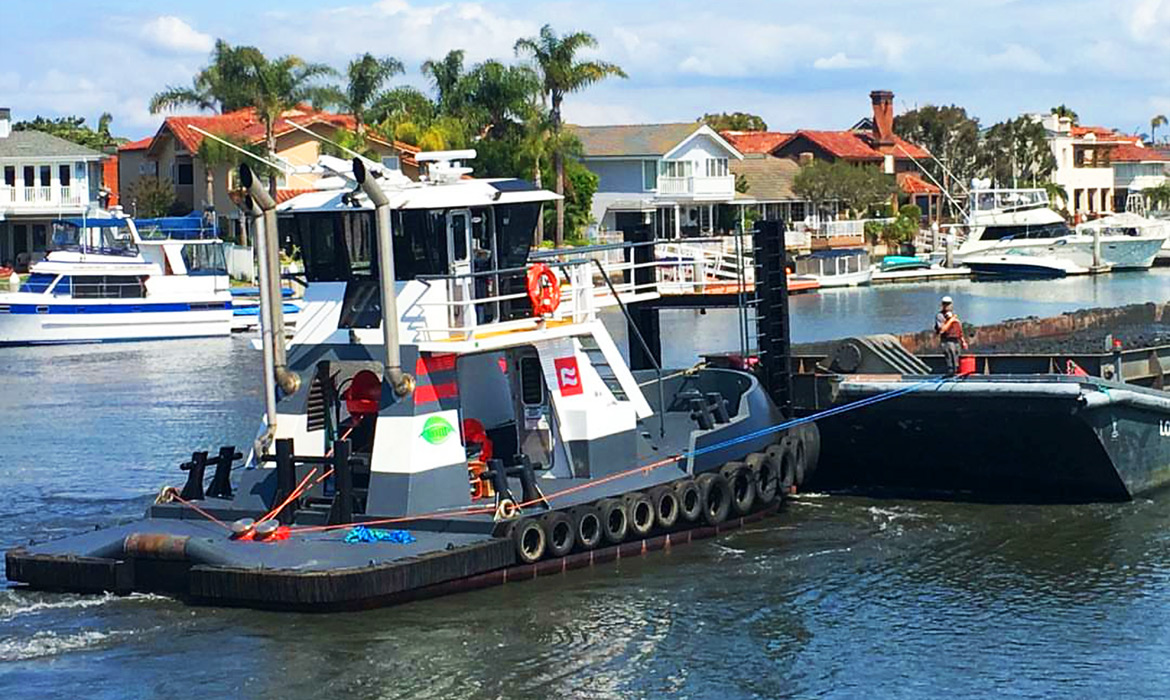

Photo Gallery
| VESSEL NAME : | BERNARDINE C |
| DIMENSIONS : | 45’ x 25’ x 5’ |
| HORSEPOWER : | 1,000 @2,000 |
| BUILT : | 2016 |
| REBUILT : | N/A |
| MAIN ENGINES: | (2) John Deere 61352 |
| TIER RATING: | 3 |
| REDUCTION GEARS: | (2) Twin Disc, MG-5114dc 4.59:1 Ratio |
| GENERATOR: | Marathon Magnaplus, 65KW |
| CAPACITY: | 110V/208V |
| TOW WINCH MODEL/DESCRIPTION: | Pull Master M 30 in custom configuration to be run forward/ aft |
| LINE/WIRE SIZE AND LENGTH: | 75’, 1 ½” Amsteel Bue |
| AUXILIARY WINCH(ES): | (2) Pullmaster M 18 in customer configuration |
| LINE/WIRE SIZE AND LENGTH: | 90’ 1 3/8” Amsteel Blue |
| TOTAL FUEL CAPACITY: | 7,000 gallons |
| WATER: | 35 gallons |
Overview
In 2015 we completed our first ‘ground up’ build, the Bernardine C. Built here at our yard in Long Beach, CA. The tier 3 compliant Bernie’ went right to work dredging Huntington Harbor as the rig tender to the DB Ben Weston. Her unique design and layout provide the Bernardine value across all work-boat formats. Rig tender, anchor handler, assist boat, but with a draft that allows her in harbors most tugs cant enter, this little tug has all the attributes of a boat twice its size.
| VESSEL NAME : | BERNARDINE C |
| DIMENSIONS : | 45’ x 25’ x 5’ |
| HORSEPOWER : | 1,000 @2,000 |
| BUILT : | 2016 |
| REBUILT : | N/A |
| MAIN ENGINES: | (2) John Deere 61352 |
| TIER RATING: | 3 |
| REDUCTION GEARS: | (2) Twin Disc, MG-5114dc 4.59:1 Ratio |
| GENERATOR: | Marathon Magnaplus, 65KW |
| CAPACITY: | 110V/208V |
| TOW WINCH MODEL/DESCRIPTION: | Pull Master M 30 in custom configuration to be run forward/ aft |
| LINE/WIRE SIZE AND LENGTH: | 75’, 1 ½” Amsteel Bue |
| AUXILIARY WINCH(ES): | (2) Pullmaster M 18 in customer configuration |
| LINE/WIRE SIZE AND LENGTH: | 90’ 1 3/8” Amsteel Blue |
| TOTAL FUEL CAPACITY: | 7,000 gallons |
| WATER: | 35 gallons |
Wheelhouse
| Radar : | Furuno DRS 6A, 4KW |
| Chartplotter : | Nobeltec Trident |
| GPS : | Furuno GP-330B |
| AIS : | Furuno FA-150 |
| Sat Compass : | Furuno SC-502 |
| Auto Pilot : | N/A |
| VHF : | ((3) Icom M-604 |
| SSB : | N/A |
| Compass : | Ritchie Powerdamp |
| Sounder : | Furuno DFF1 |
| Displays : | (2) 17” monitors s |
| Video : | CCTV Engine Room & Winches |
| Engine Monitoring : | Murphy Display panels |
| Controls : | Glendinning & John Deere Gauges |
| Searchlight : | Handheld |
| Computer : | (2) |
| Anemometer: | N/A |
| Cell Phone : | (562) 706-1593 |
| Sat Phone : | N/A |
[/fusion_table]
Galley
| N/A |
Berthing/Amenities
| N/A |
Deck
| Tow Winch Model/Description: | Pull Master M 30 in custom configuration to be run forward/aft |
| Line/Wire Size and Length: | 75’ 1 ½” Amsteel Bue |
| Power Source : | Hydraulic |
| Bow Winch Model/Description : | 1 Pull Master M 30, Same as above |
| Line/Wire Size and Length : | N/A |
| Winch Controls : | 3 Speed Tiptronic |
| Power Source : | N/A |
| TB B Winch/Push Winches : | (2) Pullmaster M 18 in customer configuration |
| Line/Wire Size and Length : | 90’ 1 3/8” Amsteel Blue |
| Power Source : | Hydraulic |
| Capstan : | N/A |
| Tow Pins : | Removable |
Fendering
| Laminate, Aircraft Tires |
Machinery
| Main Engines : | (2) John Deere 6135 |
| Total Horsepower: | 1,000@2,000 |
| Tier Rating : | 3 |
| Z-Drive : | N/A |
| Thruster : | N/A |
| Reduction Gears : | (2) Twin Disc MG-5114dc 4.59:1 Ratio |
| Generator : | Marathon Magnaplus 65KW |
| Capacity : | 110V/208V |
| Generator Engine : | (2) John Deere 4045 |
| Generator Engine Starting : | Electric Motor |
| Generator Engine Cooling : | Fernstrum Grid Cooler |
| Fire Fighting : | Diesel trash pump, Sea Fire Detection System |
| Fuel Transfer : | Marathon 1HP 1 |
Running Gear
| Propellers : | 48” x 48” 4-blade bronze |
| Shafts : | 4” Stainless |
| Shaft Through Hull : | Conventional stuffing box |
| Rudders/Nozzles : | Individually steerable Kort Nozzles |
Auxiliary Machinery
| Hydraulic Pumps: | (1) |
| Air Compressor: | Quincy QT-7.5 |
| Electrical Service: | 110V/208V |
| Water Maker: | N/A |
Equipment
| Welder: | N/A |
| Oxygen/Acetylene: | N/A |
Tankage
| Total Fuel Capacity : | 7,000 gallons |
| # Of Fuel Tanks : | 4 |
| Day Tanks : | N/A |
| Water : | 35 gallons |
| Lube : | N/A |
| Hydraulic : | 236 gallons |
| Ballast : | N/A |
| Slops : | N/A |
Cordage
1 ¾” 20’ Amsteel Blue1¾” 40’ Amsteel Blue
| (1) |
| (2) |
Safety
| Liferaft: | Revere 4-Person “A” Pack |
| Liferings: | 2 |
| EPIRB : | EPIRB- ACR RLB-41 |
| Fire Extinguishers : | 3 |
| Fixed Extinguisher : | 50lb B5 |
| Life Preservers : | (3) Type 1 |
| AED : | Yes |
| First Aid Kit : | Yes |
| Trauma Kit : | No |
| Oxygen Bottle : | Yes |
| Stokes Board : | Yes |
