Derrick Barge: 110′ x 48′ x 10.5″

Ben Weston

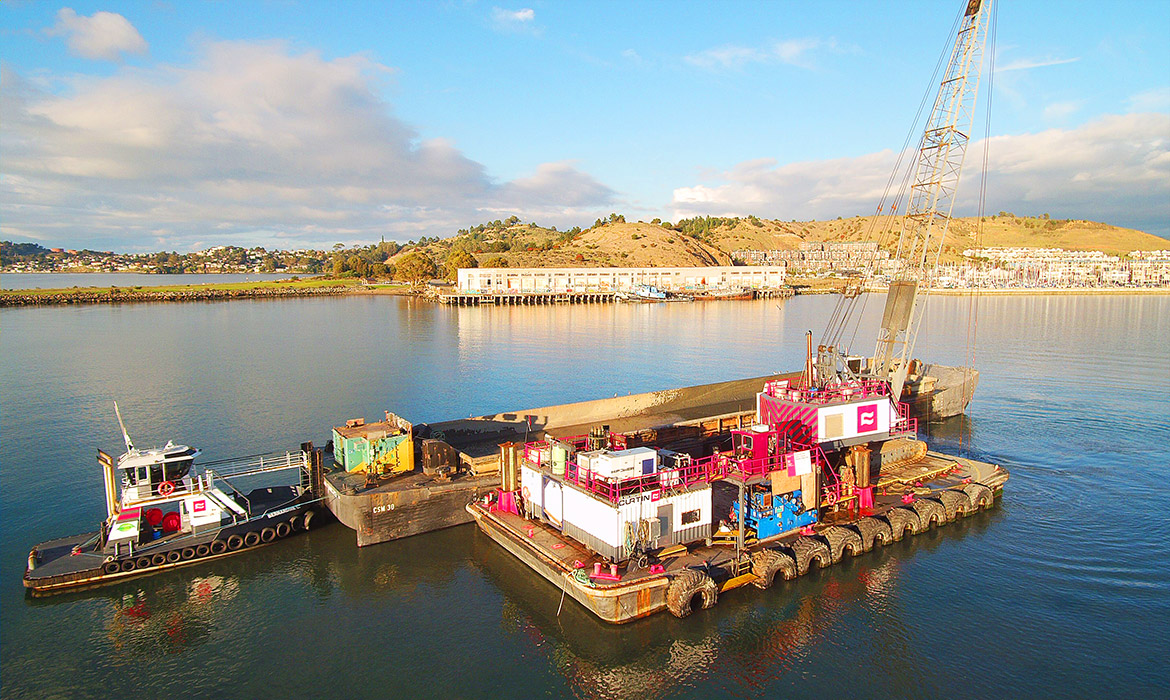

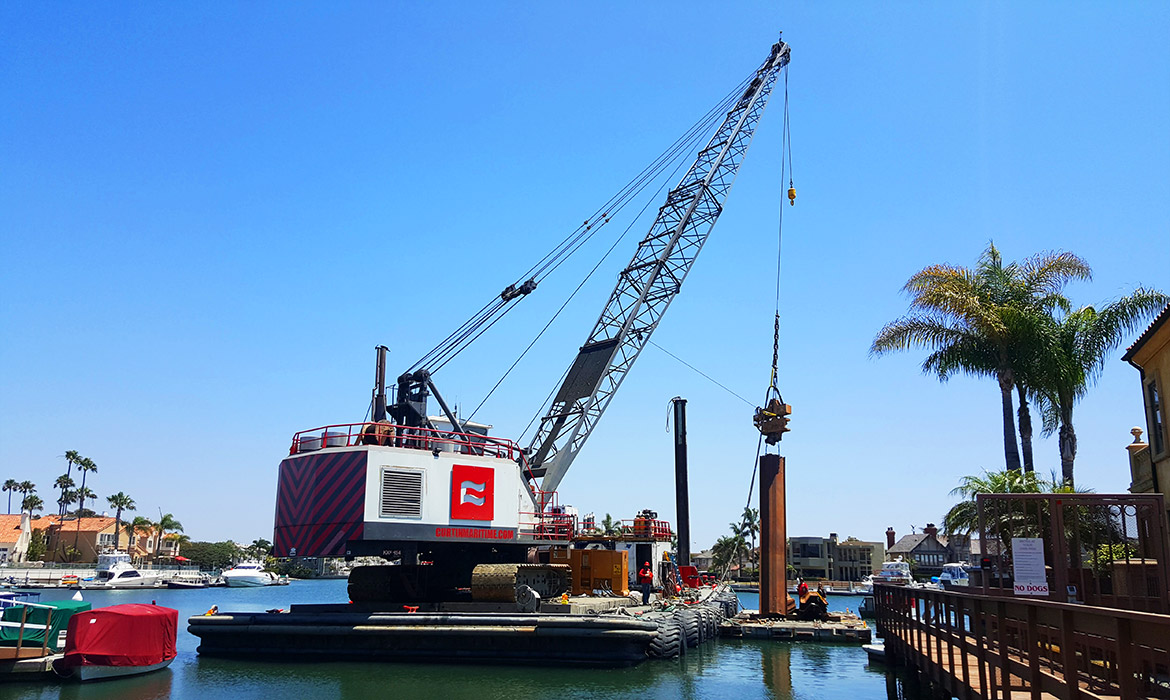

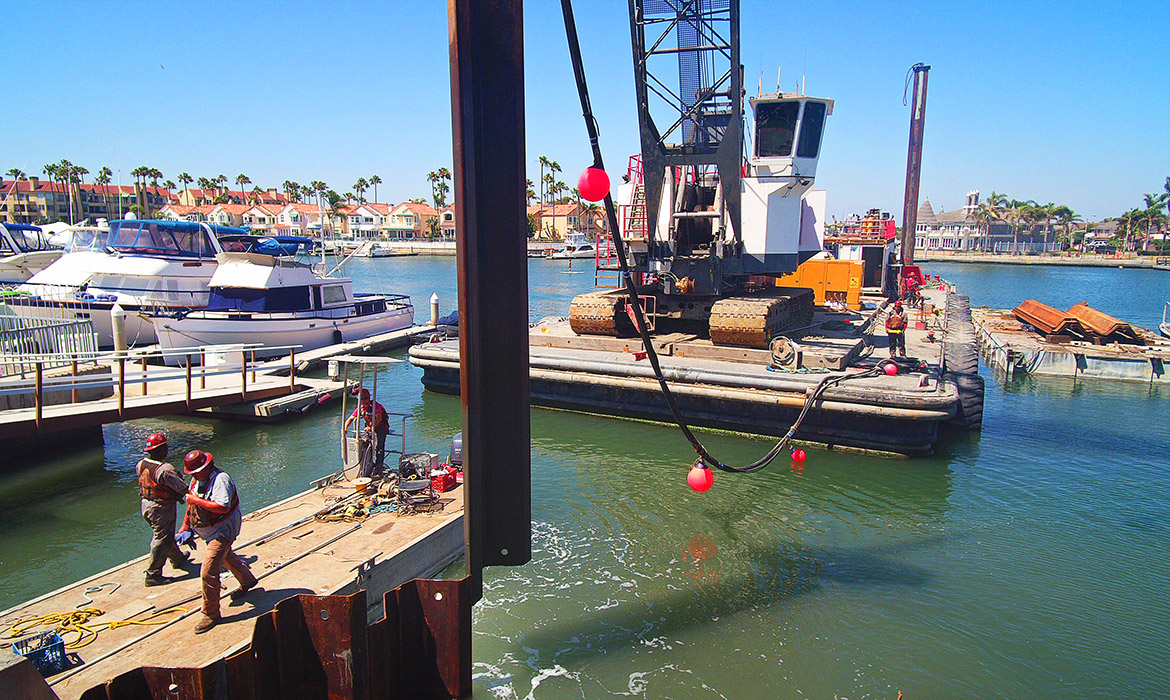

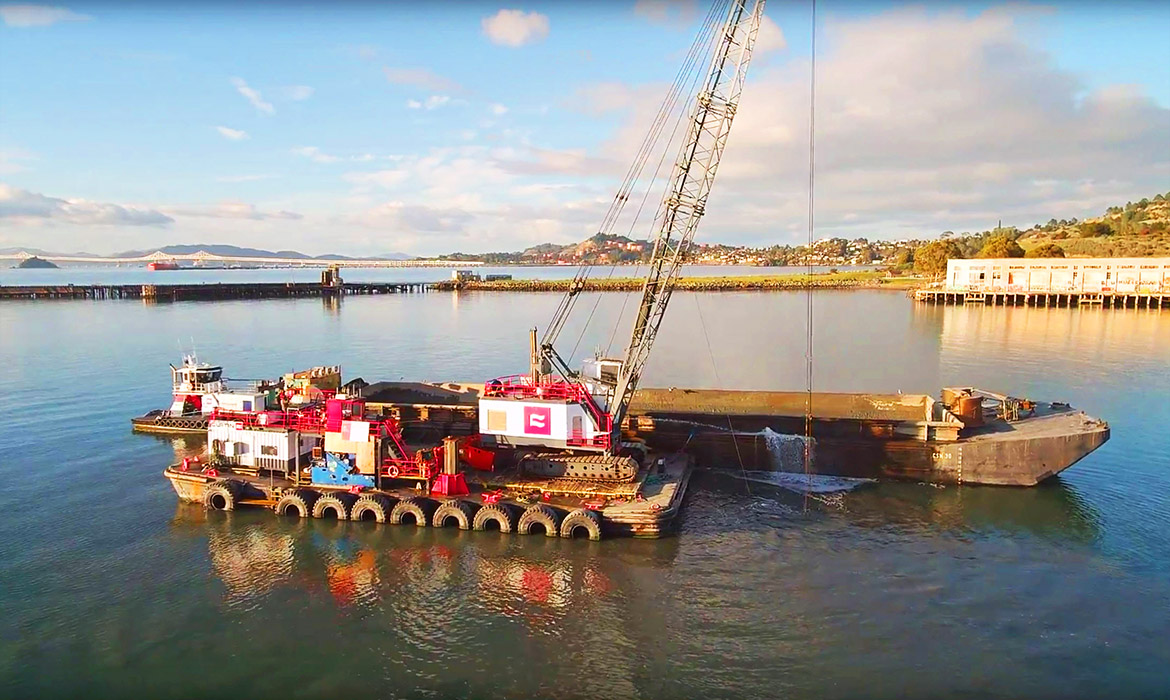

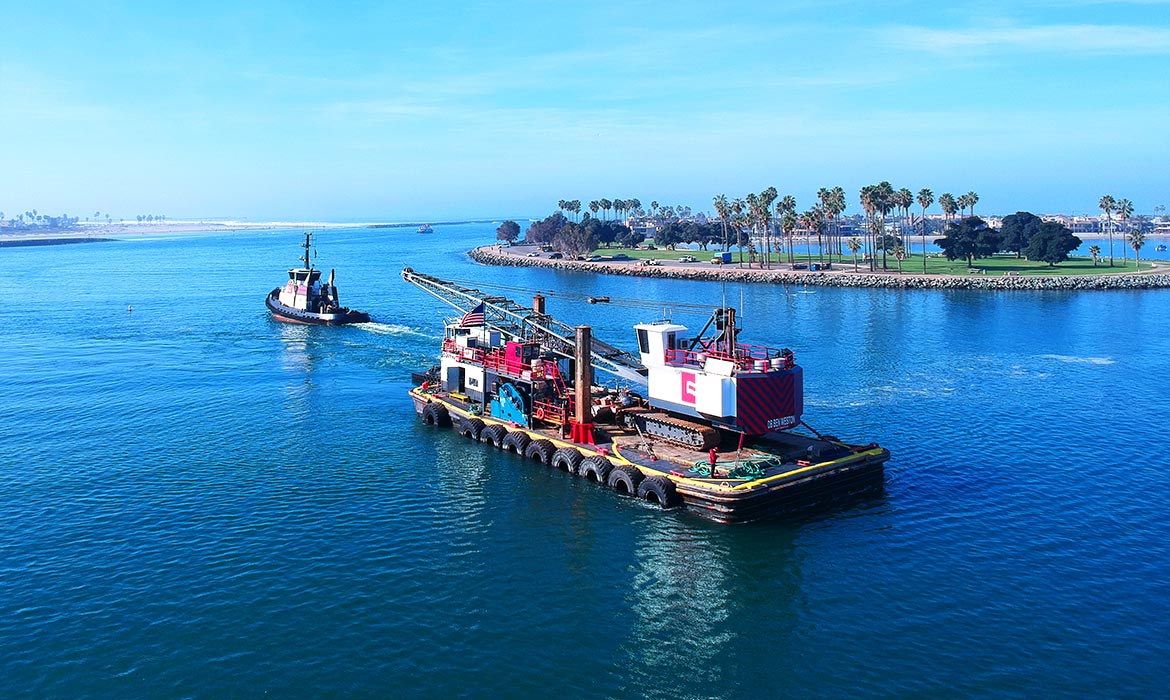

Home to Mega-Crane, the DB Ben Weston is the ultimate inland-marine construction platform. Mostly used for our dredging operations, the DB Ben Weston is as versatile as they come. With a two spud system run by a Clyde frame-8 winch, the Ben Westons’ control cab has a birds-eye view of the working deck area, as well as monitors displaying a live video feed to both winches and wire runs.    Ample above and below deck stowage, full galley, two restrooms, and a fully furnished P.M. Office, The DB Ben Weston was built to accommodate all facets of every job.

General Information

Year- 1945
Builder- Dravo Corporation
Rebuilt- 2015
Length- 110’
Beam- 48’
Depth- 10.5’
Deep Draft- 8’
Light Draft- 6’
Official Number- 1042158

IMO Number- N/A
MMSI- 367716480
Call Sign- WDI 6226
Class- N/A
Load Line- N/A
Certification- USCG
Gross Tonnage- 465 GRT
Air Draft- 35’ (Crane)
Last Dry Dock- 2015

Specifications
Download Spec Sheet
General Arrangement
General Arrangement
Contact Info
CALL
EMAIL

Photo Gallery

General

Year- 1945
Builder- Dravo Corporation
Rebuilt- 2015
Length- 110’
Beam- 48’
Depth- 10.5’
Deep Draft- 8’
Light Draft- 6’
Official Number- 1042158
IMO Number- N/A
MMSI- 367716480
Call Sign- WDI 6226
Class- N/A
Load Line- N/A
Certification- USCG
Gross Tonnage- 465 GRT
Air Draft- 35’ (Crane)
Last Dry Dock- 2015

Overview

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Nam viverra euismod odio, gravida pellentesque urna varius vitae. Sed dui lorem, adipiscing in adipiscing et, interdum nec metus.

General

Year- 1945
Builder- Dravo Corporation
Rebuilt- 2015
Length- 110’
Beam- 48’
Depth- 10.5’
Deep Draft- 8’
Light Draft- 6’
Official Number- 1042158
IMO Number- N/A
MMSI- 367716480
Call Sign- WDI 6226
Class- N/A
Load Line- N/A
Certification- USCG
Gross Tonnage- 465 GRT
Air Draft- 35’ (Crane)
Last Dry Dock- 2015

Deck Machinery

Spud Winch- Clyde Frame 8, 2-Drum
(2)
Winch Engine- VM Motori 24-cp/23
Tier Rating- 3
Hydraulic Pump- Hagglunds
Generator- John Deere 4045
Capacity- 65 Kw
Output- 480V
Tier Rating- 3
Water Maker- N/A

Fixed Deck Gear / Equipment

75’ x 30” Square Spuds (2)
Internal Spud Wells (2)
ERL Hand Crank Winches (3)
2” Fire Monitor (1)

Available Deck Gear / Equipment

Smith-Berger Vertical Deck Sheaves (4)
Smith-Berger Fairleads (2)
Smith-Berger Horizontal Deck Sheaves (2)
Smith-Berger Vertical Roller (1)
18,000 lbs Pneumatic Tugger Winch (1)
Gardner-Denver 3,750 lbs Pneumatic Tugger Winch (2)
Gardner-Denver 1,800 lbs Pneumatic Tugger Winch (1)
Buoy Roller (1)
Buoy Cradles (8)
1” – 3 ¼” Chain Lock (1)
Ocean Guard Mooring Buoys (4)
6,600 lbs Flipper Delta Anchors (4)
Hose Lock (1)

Tools

Welders- Miller XMT-350
   Lincoln “Tombstone”
Oxygen/Acetylene-
(2) Victor Journeyman Torch Setups
Plasma Cutter- (1) Hypertherm 85A
Air Compressor- (1) Ingersoll-Rand UP6S-25 125 CFM
Pressure Washer- Cam-Spray 5HP 4GPM
(1) Chest tool boxes loaded with hand tools, chorded and chordless tools, with standard and metric sizes.

Electronics

AIS- Furuno FA-150
VHF- (2) Icom M-604
GPS- Trimble SPS46
Chartplotter- Nobeltec Trident
Computer- (1) Lenovo Thinkcenter
Dell Desktop W/ 20” Monitor
Cameras- (6) CCTV
Cell Phone- (562) 706-0453
Satellite Phone- N/A
Crane
Lima 2400B
Galley
Refrigerators (2)
Freezers (2)
Oven/Ranges (2)
Microwaves (2)
Stainless Prep table (1)
Stainless 1 Bay Sink (1)

Berthing/Ammenities

Heads- 2
Showers- N/A
Washer/Dryer- (1) Kenmore Front Load
Water Heaters- (2) Tank Water Heaters
Sinks- (1) W/ Mirrors
Tankage
Water- 1,000 Gallons
Fuel- Deck Loaded
Ballast- (16) Tanks
Black Water- 7,000 Gallons

Safety

Liferaft- N/A
Liferings- N/A
EPIRB- N/A
Fire Extinguishers- 4
Fixed Extinguisher- N/A
Survival Suits- N/A N/A
Life Preservers- N/A
-AED 1
First Aid Kit- 1
Oxygen- N/A
Trauma Kit- N/A
