Dump Scow:EPA Tier 4

Inspiration Point 315′ Split Hull Hopper Barge 6,000 Cubic Yards

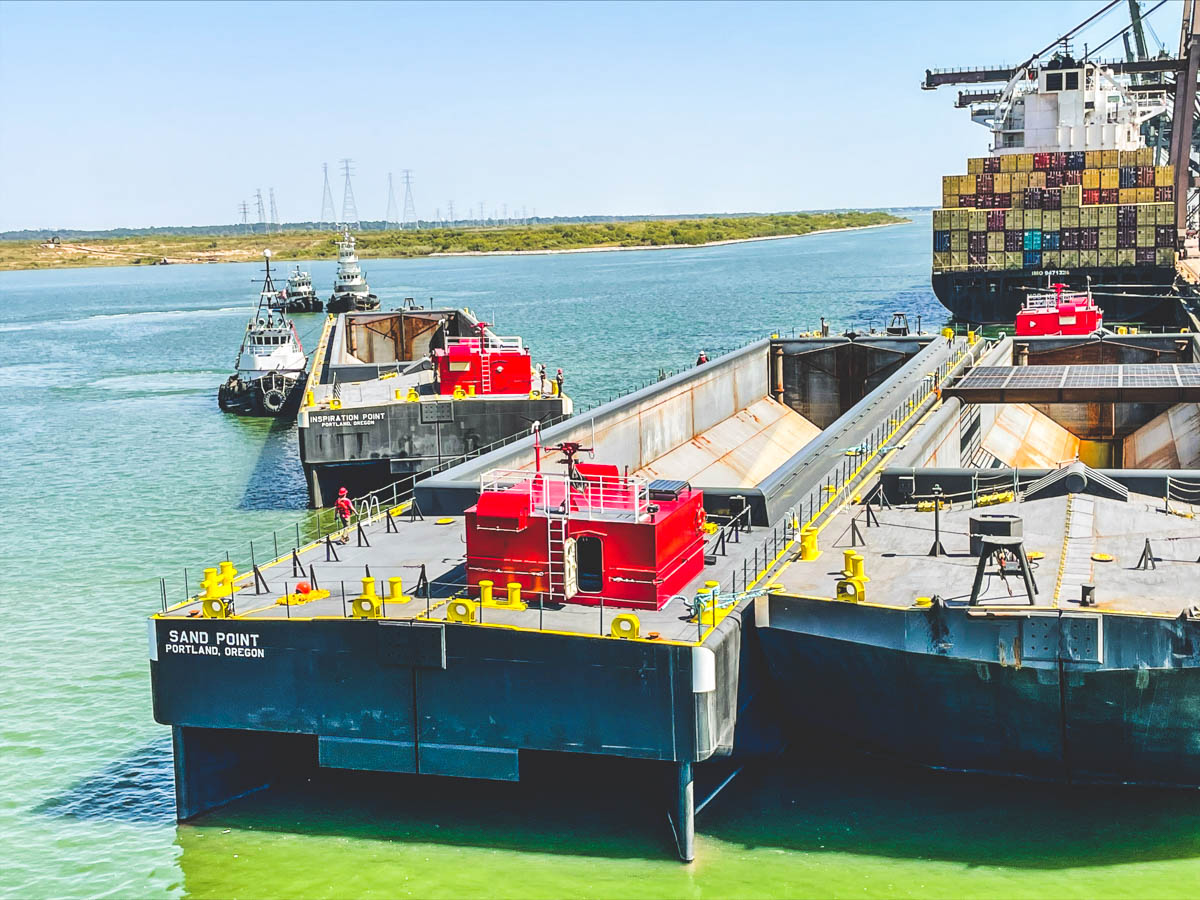

Curtin Maritime’s Inspiration Point dump scow has a length of 315 feet, a breadth of 54 feet, and a depth of 26.5 feet. When loaded, the scows have a draft of 20.5 feet, while their draft is 5 feet when unloaded. Sand Point has a capacity of 6,000 cubic yards and is equipped with a split-hulled bottom dump system. The scows are classed as ABS A1 barges with a B-25 load line. They are powered by a Caterpillar C7.1 EPA Tier 4 mechanical system.

General Information

Footprint of Scows:
Length: 315’
Breadth: 54ft
Depth: 26.5’
Draft: loaded-20.5ft; unloaded-5’

Capacity: 6,000 cubic yards, each
Type of Scow: Split-hulled bottom dump
Classed; Load line: ABS A1 Barge; B-25 LL
Mechanical system: Caterpillar C7.1 EPA Tier 4
