Crane: Manitowoc 4600 Series 3, Tier III
Manitowoc 4600 Series 3

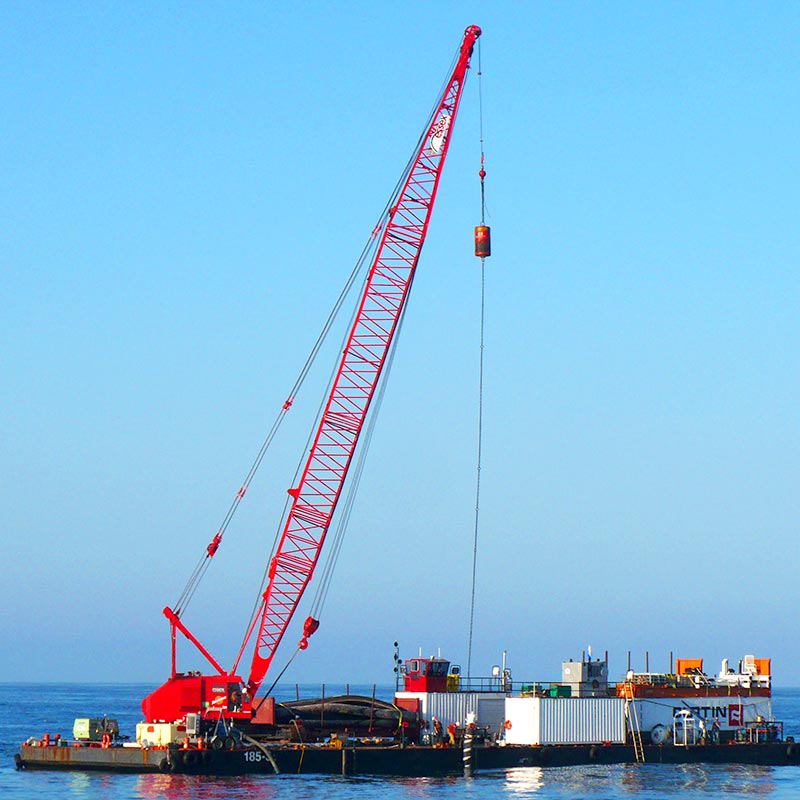

The crane “Manfred” currently traveling with the DB Salta Verde is our Manitowoc 4600 Series 3 crane, a machine versatile & reliable enough to meet the demanding needs of the marine construction world. The Manitowoc, affectionately known as “Manfred”, is the perfect fit for offshore marine construction projects like hook work, rock placement, pile driving, etc. The combined punch of the 4600 series’ sturdy reputation, the deck barge platform it works from, and our own certified, experienced operators make this Manfred the most excellent choice for off-shore efficiency.
See more of our cranes here: Cranes >
Year- 1967
Model- 4600 Series 3
Builder- Manitowoc
Rebuilt- N/A
Type- Conventional Duty Cycle
Main Engine-
John Deere, 6090HF485DD, 2019, RG6090L138874, 375HP (280kW)
Tier Rating-3
Distance from Deck to Boom Heel- 8’
Boom Length to Heel Pin- 140’
Boom Length (Standard Configuration)- 140’
Lifting Lines- 2
Main Drum Hoist Wire- 1-1/4”
Auxiliary Drum Hoist Wire- 1-3/8”
Boom Hoist Drum Wire- 1”
Maximum Capacity- 480,000 lbs
Line Pull- 55,000 lbs
@ 27’ Radius- 254,600 lbs
@ 140’ Radius- 23,500 lbs
Photo Gallery
| Model : | Manitowoc 4600 Series 3 Crane |
| Year : | 1967 |
| Rebuilt : | N/A |
| Type : | Conventional Duty Cycle |
| Main Engine : | John Deere, 6090HF485DD, 2019, RG6090L138874, 375HP (280kW) |
| Tier Rating: | 3 |
| Distance from Deck to Boom Heel: | 8’ |
| Boom Length to Heel Pin: | 140’ |
| Boom Length (Standard Configuration: | 140’ |
| Lifting Lines: | 2 |
| Main Drum Hoist Wire: | 1-1/4” |
| Auxiliary Drum Hoist Wire: | 1-3/8” |
| Boom Hoist Drum Wire: | 1″ |
| Maximum Capacity: | 480,000 lbs |
| Line Pull: | 55,000 lbs |
| @ 27’ Radius: | 254,600 lbs |
| @ 140’ Radius: | 23,500 lbs |
Overview
The Manitowoc, affectionately known as “Manfred”, is the perfect fit for offshore marine construction projects like hook work, rock placement, pile driving, etc. The combined punch of the 4600 series’ sturdy reputation, the deck barge platform it works from, and our own certified, experienced operators make this Manfred the most excellent choice for off-shore efficiency.
General
| Model : | Manitowoc 4600 Series 3 Crane |
| Year : | 1967 |
| Rebuilt : | N/A |
| Type : | Conventional Duty Cycle |
Machinery
| Main Engine : | John Deere, 6090HF485DD, 2019, RG6090L138874, 375HP (280kW) |
| Tier Rating : | 3 |
| Engine Monitoring- Gauges : | |
| Torque Converter- : | (2) Twin Disc Vicon 10,000 Series , Twin Disc Vicon 11,000 Series |
| Generator : | N/A |
| Generator Capacity : | N/A |
| Generator Output : | N/A |
| Tier Rating : | N/A |
| Air Compressor- : | Quincy 350-A |
| Fuel Capacity : | 600 Gallons |
| Hydraulic Pumps : | N/A |
Controls
| Main Controls | Air |
| Hoist | Air |
| Brake | Air |
| Swing | Air |
Electronics
| VHF | (2) Icom M-604 |
| Computer | N/A |
| Camera | N/A |
| Load Moment Indicator | LSI Robway GS550 |
| Climate Control | Air Conditioning |
Equipment
| Tagline Winch: | Rudomatic 4-Barrel |
| Lighting: | N/A |
Specifications
1”
| Distance from Deck to Boom Heel: | 8’ |
| Boom Length to Heel Pin: | 140’ |
| Boom Length (Standard Configuration: | 140’ |
| Lifting Lines: | 2 |
| Main Drum Hoist Wire: | 1-1/4” |
| Auxiliary Drum Hoist Wire: | 1-3/8” |
| Boom Hoist Drum Wire: |
Capacities
| Maximum Capacity: | 480,000 lbs |
| Line Pull: | 55,000 lbs |
| @ 27’ Radius: | 254,600 lbs |
| @ 140’ Radius: | 23,500 lbs |
